Custom Sprocket with Keyway & Hub

Precision-machined sprocket with keyed hub for conveyor system

WASIL (West African Soy Industries Limited) · Ogun, Nigeria · 2025-01-30

Manufactured a custom sprocket with machined hub and keyway for a soybean processing plant conveyor.

Custom Sprocket with Keyway & Hub

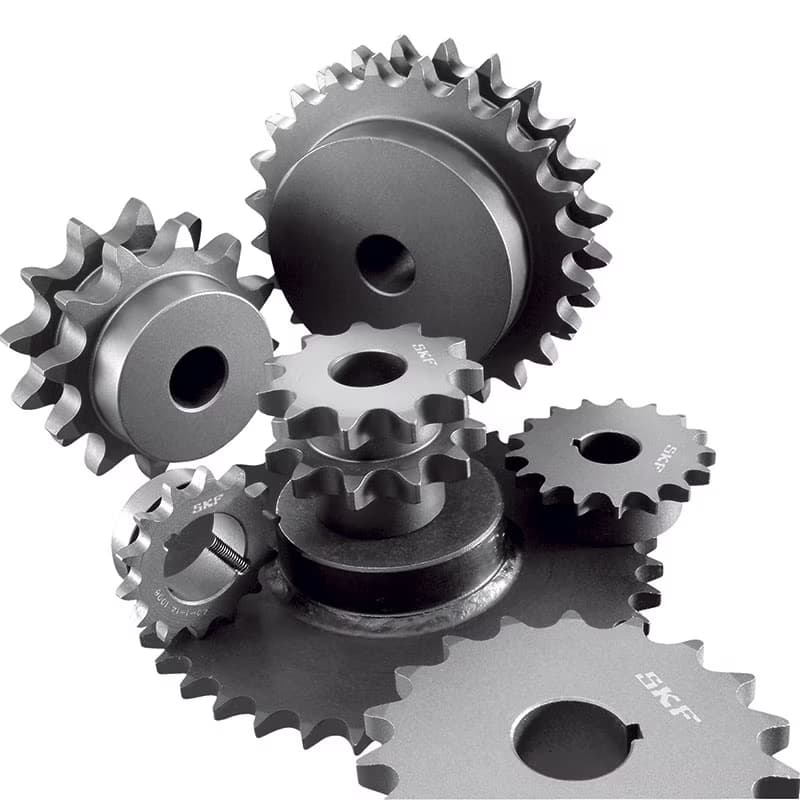

Machined sprocket hub with keyed bore and set screw holes, pre-installation.

Sprocket teeth profile checked against chain pitch gauge for accuracy.

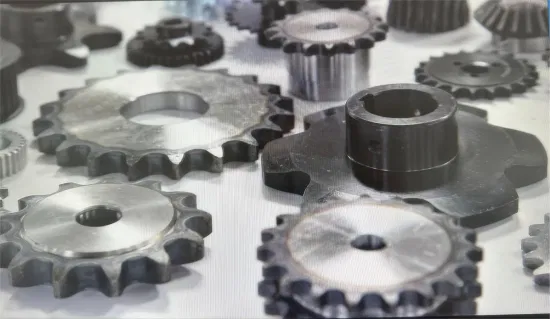

Final sprocket assembly with hub, ready for balancing.

Balancing setup on lathe to ensure smooth rotation in service.

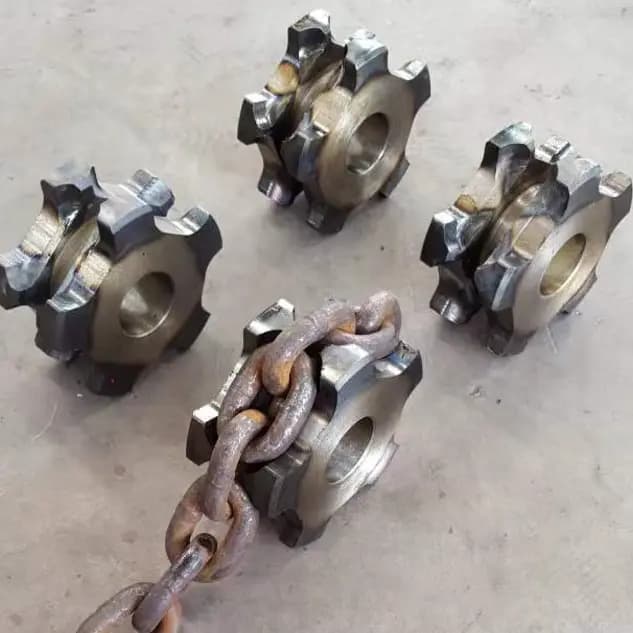

Finished sprocket with rust-preventive oil coating for protection.

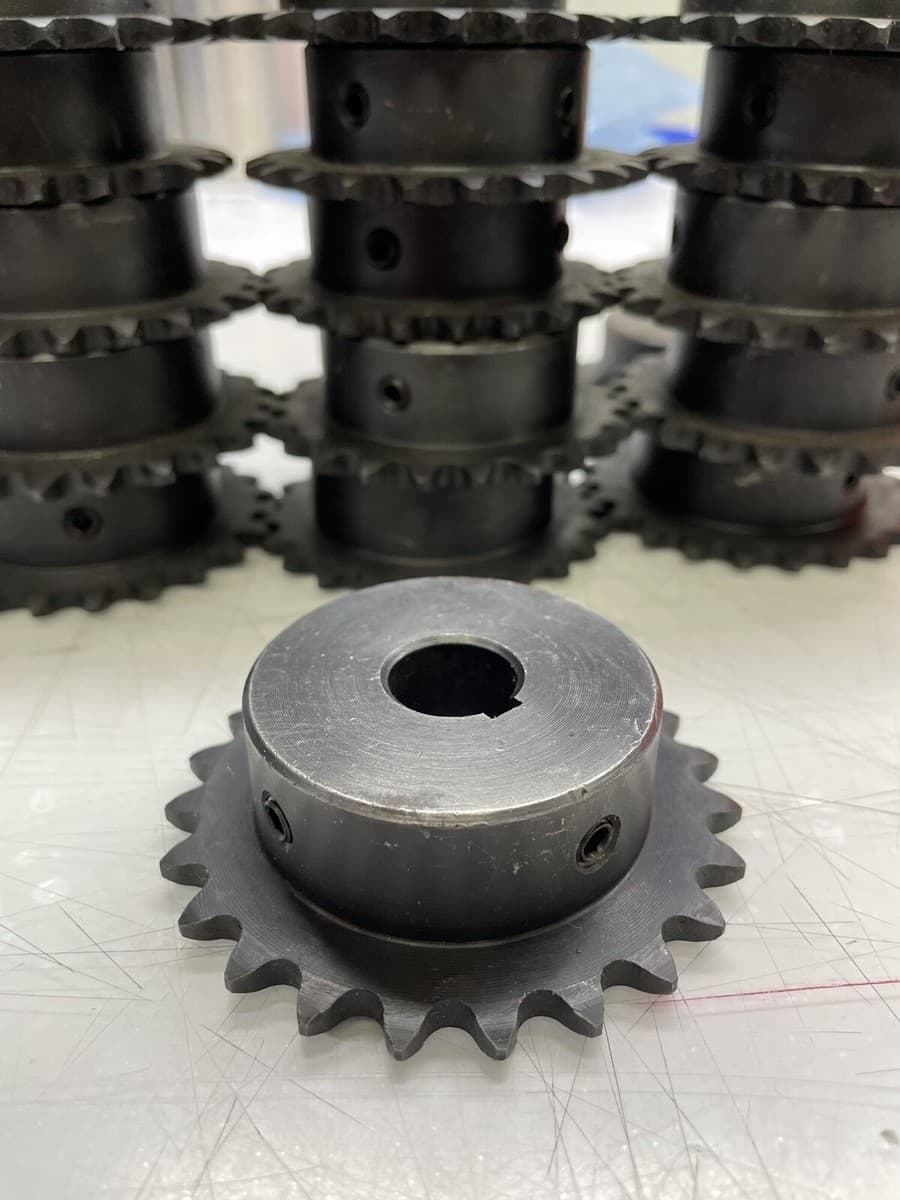

Packaged sprocket assemblies ready for shipment to client.
