Precision Bronze Bushing Batch

Manufactured for Agrira West Africa limited · Orile-Imo Town, Obafemi Owode Local Government Area, Ogun State, Nigeria. · 2025-02-14

Manufactured a batch of phosphor-bronze bushings to tight tolerances for industrial machinery.

Precision Bronze Bushing Batch

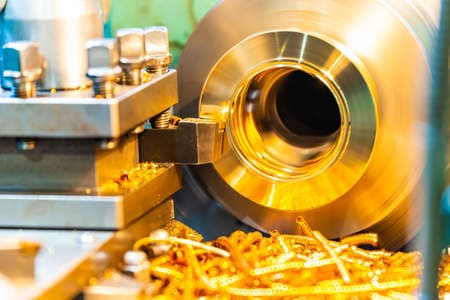

Rough and finish turning complete; chamfers applied prior to boring.
Rough and finish turning complete; chamfers applied prior to boring.
Oil groove and final bore verification; surface finish checked for consistency.
Oil groove and final bore verification; surface finish checked for consistency.

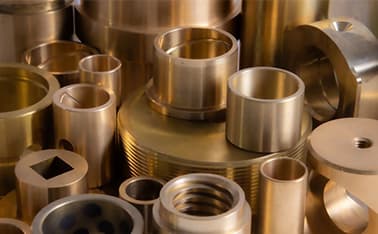

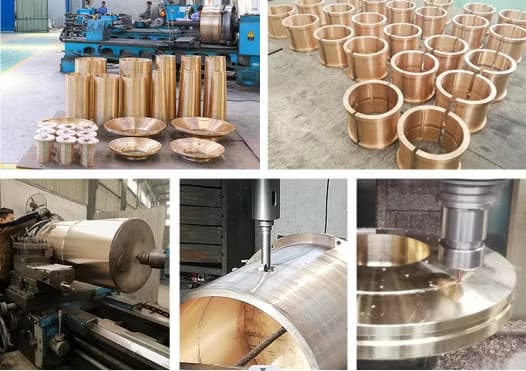

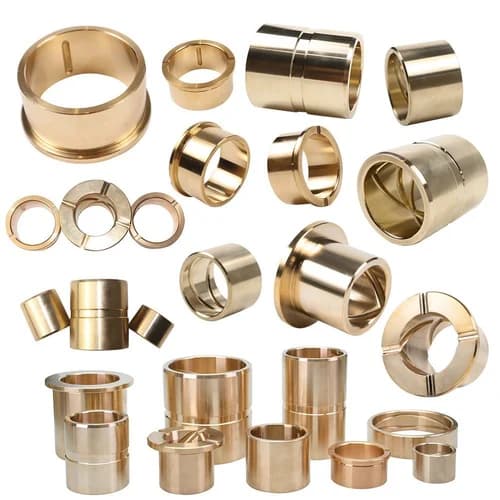

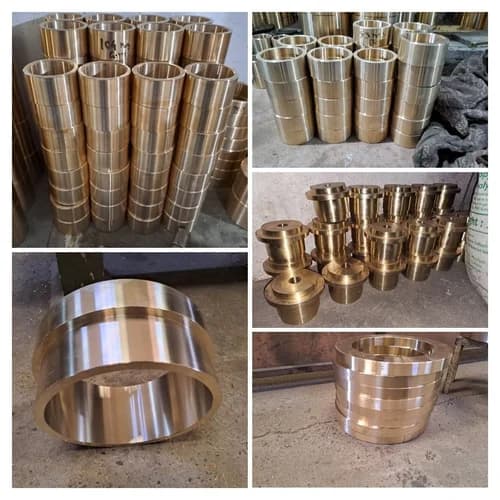

Completed bushings laid out for final inspection and quality control.
Completed bushings laid out for final inspection and quality control.

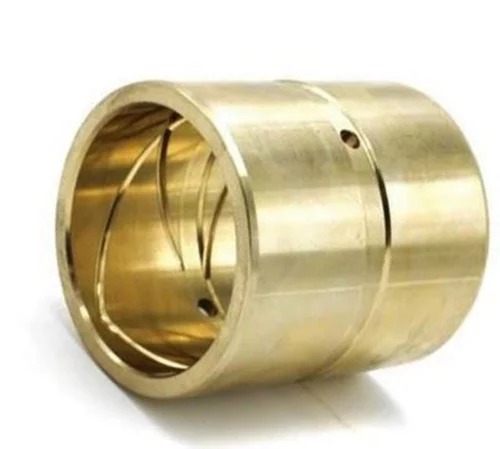

Close-up of machined oil groove and chamfer details.
Close-up of machined oil groove and chamfer details.

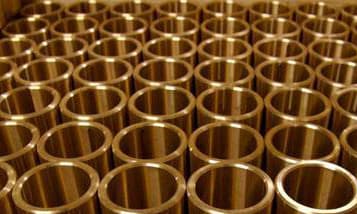

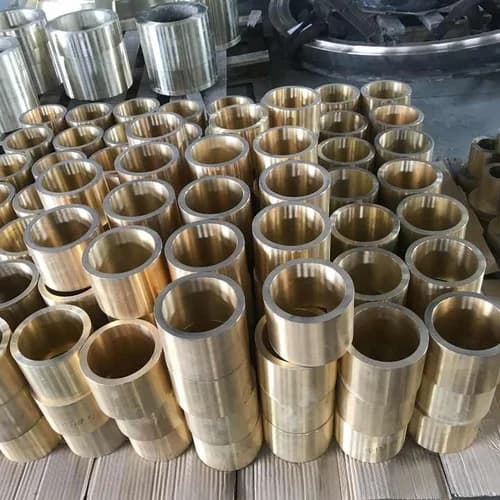

Batch of bushings ready for packaging and delivery to client.
Batch of bushings ready for packaging and delivery to client.
Surface finish measurement using profilometer to ensure Ra 0.8 µm.
Surface finish measurement using profilometer to ensure Ra 0.8 µm.
Bushing bore being checked with a precision gauge for diameter accuracy.
Bushing bore being checked with a precision gauge for diameter accuracy.

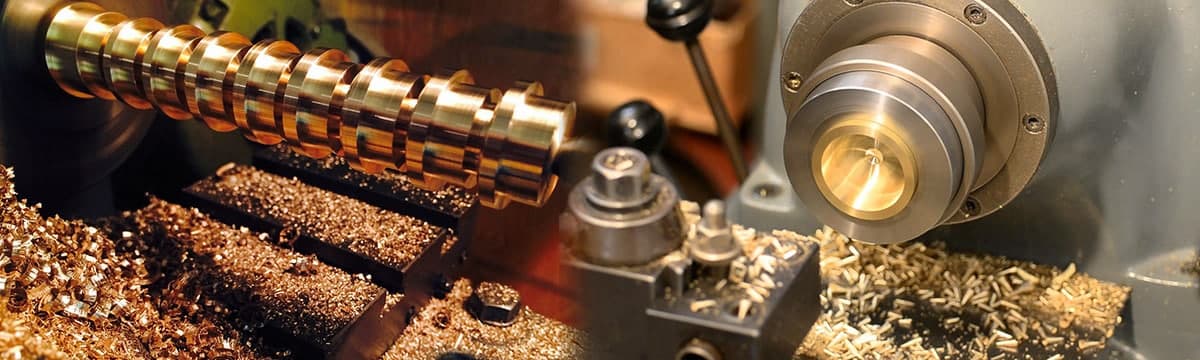

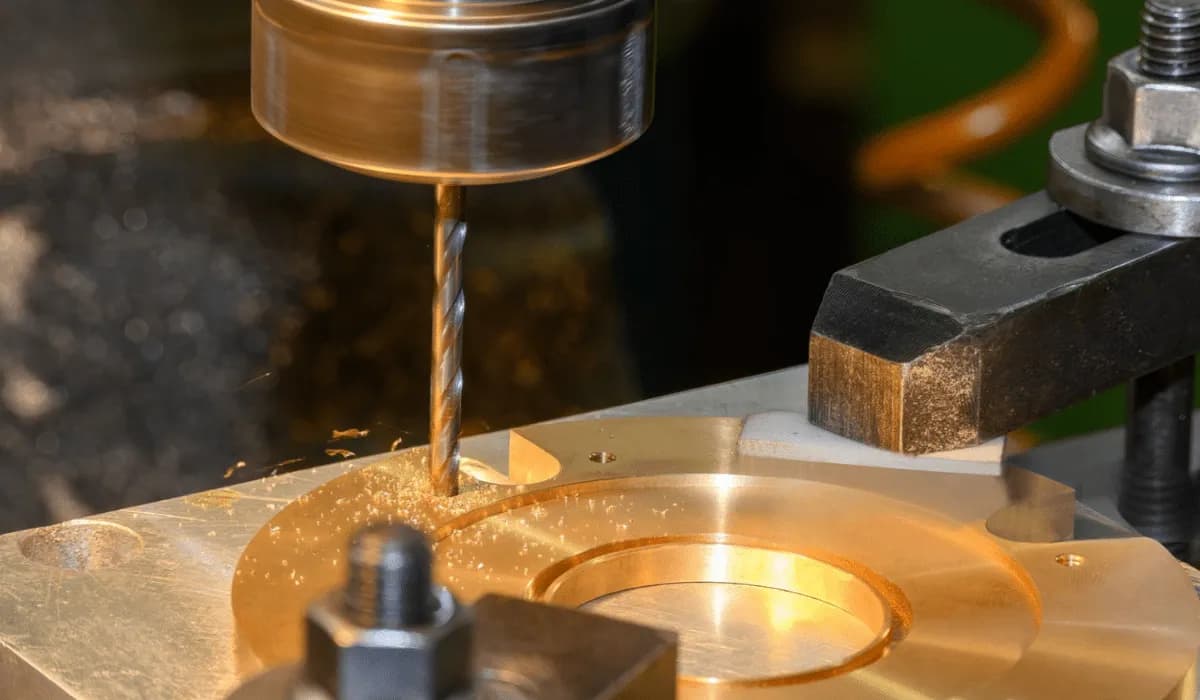

Machining setup showing lathe and tooling used for turning operations.
Machining setup showing lathe and tooling used for turning operations.
Material stock (phosphor-bronze) prior to machining.
Material stock (phosphor-bronze) prior to machining.
Quality control checklist used to verify all specifications are met.
Quality control checklist used to verify all specifications are met.
Team members inspecting finished bushings for defects and consistency.
Team members inspecting finished bushings for defects and consistency.
Packaged bushings ready for shipment to Agrira West Africa Limited.
Packaged bushings ready for shipment to Agrira West Africa Limited.
